Quick Details

  • Place of Origin: Japan
  • Brand Name: Mitutoyo
  • Model Number: US-IP67-055
  • Model: 500 series
  • Waterproof performance: IP67 (reted IP65 or better)
  • Patent registered: U.S.A, China, Germany, U.K., France, Switzerland, India , and Japan

Packaging & Delivery

Packaging Details Securely packaged in cardboard with buffering material
Delivery Time Following verification of payment, shipped within 10 days.

Water-resistance  mitsutoyo digital vernier caliper made in Japan

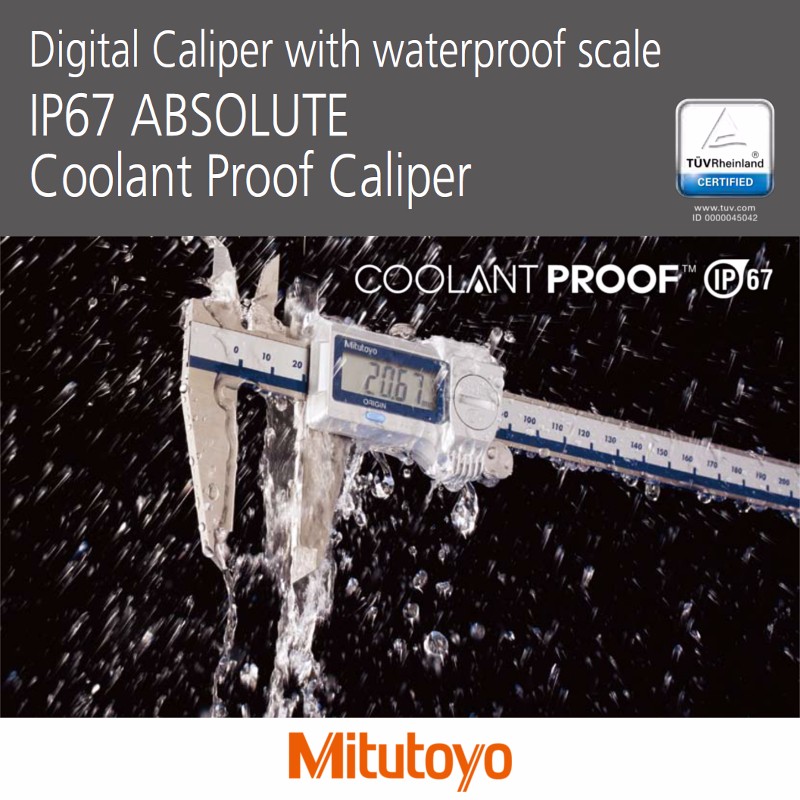

Digital Caliper with waterproof scale
IP67 ABSOLUTE Coolant Proof Caliper





Product Description

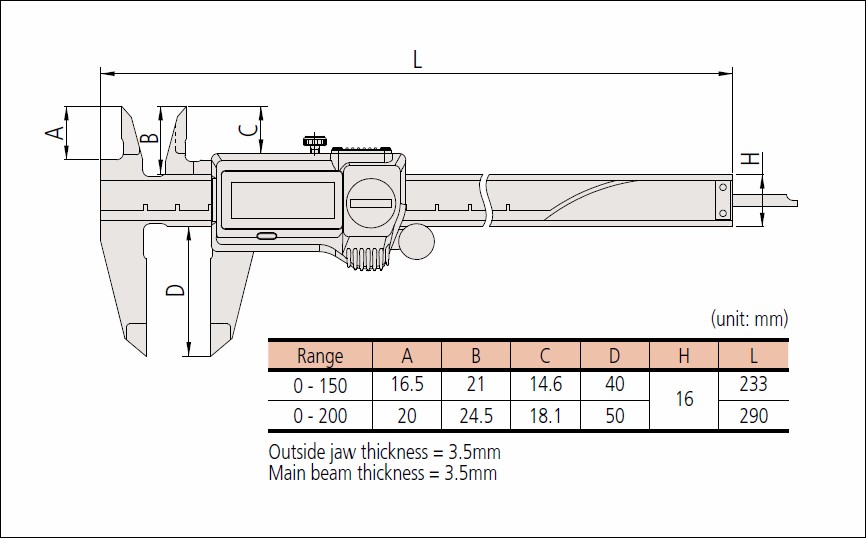

Specifications <Metric>

Order No.RangeMassMeasurement data output portRemarks
500-702-200 - 150mm168g-
500-703-200 - 200mm198g
500-712-200 - 150mm168g
500-713-200 - 200mm198g
500-719-200 - 150mm168gDepth bar φ1.9mm
500-721-200 - 150mm168gCarbige-tipped jaws for outside measurement
500-722-200 - 200mm198g
500-723-200 - 150mm168gCarbige-tipped jaws for outside and inside measurement
500-724-200 - 200mm198g







Protection code IP67

 This standard ABS coolant-proof caliper is rated to protection code IP67, which allows trouble-free use even in situations where it is exposed to coolant or cutting oil. A 100% air-leak test before product shipment guarantees IP67 performance.


Simple design

 Simple design with only one switch allows easy measurement operation.


The Auto-Power ON/OFF

 The Auto-Power ON/OFF function blanks the LCD by turning off the power if the caliper is not used for about 20 minutes. However, the origin point of the ABS length measuring system is still stored in memory. Moving the slider automatically restores power to the LCD.


Absolute scale

 The built-in ABS (absolute) scale eliminates the need for origin setting at every power-on to allow measurement to start immediately.


Battery life: 5 years

 Lower current consumption has drastically improved battery life to 5 years (formally: 3 years).
