Quick Details

  • Condition: New
  • Place of Origin: Japan
  • Brand Name: KITO
  • Model Number: KITO-CX-033
  • Usage: Other
  • Power Source: Hand Chain
  • Sling Type: Chain
  • Maximum Lifting Weight: 0.25t / 0.5t
  • Maximum Lifting Height: 2.5m
  • Lift Speed: Free
  • Certification: ISO9001
  • Warranty: 1 Year
  • After-sales Service Provided: Overseas service center available

Packaging & Delivery

Packaging Details Securely packaged in cardboard with buffering material
Delivery Time Following verification of payment, shipped within 10 days

Durable and Reliable standard chain block, KITO Chain hoists CX series at reasonable prices , small lot order available

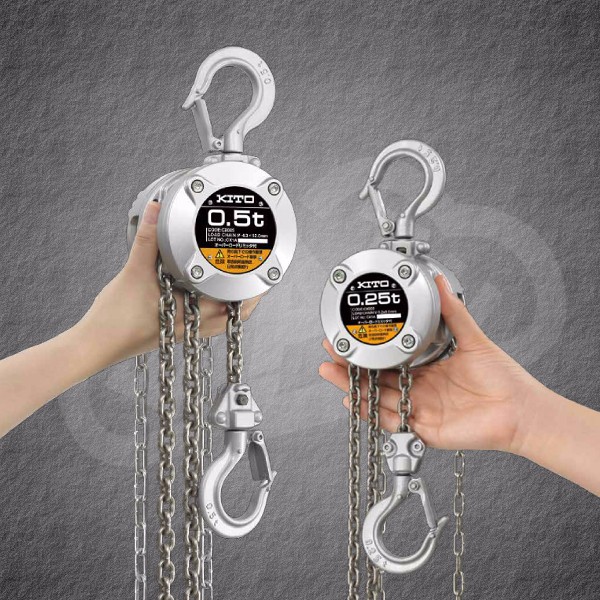

<KITO CX series>



Ultra-compact hand chain hoists:

              extremely lightweight and portable



 -Compact, lightweight and simple design
 -Integral aluminum body
 -Easily portable anywhere
 -Easy and smooth operation with minimal hand-pull force
 -Wide internal hook diameter expands the applicable range





Product Description



 Capacity 0.25 t, 0.5 t
 Standard Lift 2.5 m
 Operating Temperature -40 to +60 degrees









Integral Aluminum Body
 Aluminum body with steel frame for superior strength



Easy and Smooth Operation with Minimal Hand-pull Force
 Minimal force required to lift load

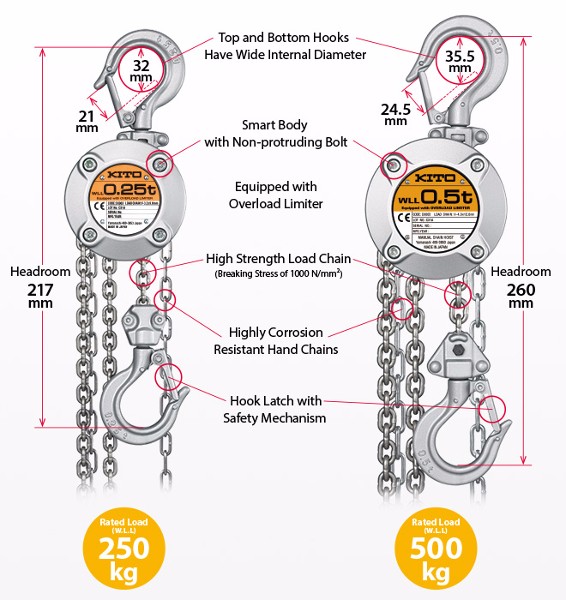

Wide Internal Hook Diameter Expands the Applicable Range. Top and Bottom Hooks
 -Wide hook opening allows easy installation onto almost any reliable attachment point.
 -Thicker safety tip hook latch designed for increased durability, and notched to securely engage the latch with the hook tip.

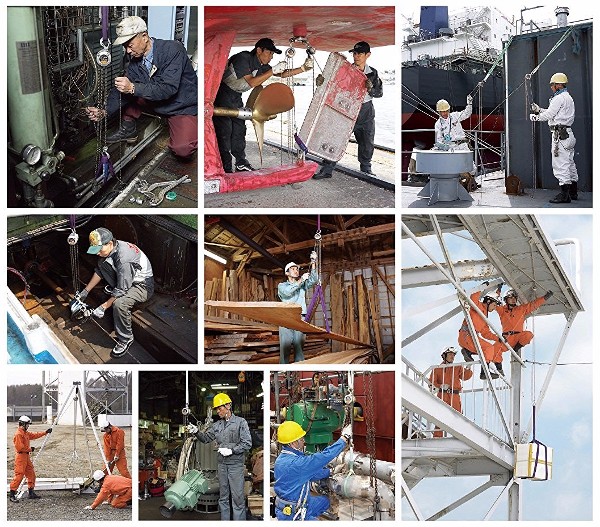

Easily Portable Anywhere
 Suitable for work in confined spaces or wherever you need to lift a light load. Can be transported, installed and stored effortlessly.



Nickel-plated Super-strong Load Chain (Breaking Stress of 1000 N/mm2)
 Abrasion- and corrosion-resistant, plated load chain grade V (high breaking strength of 1,000 N/mm²)



Hand Chain
 Durable and highly corrosion resistant hand chain



Equipped with Overload Limiter
 The advanced-design overload limiter comes as standard on the CX to enhance worker safety and protect the hoist against excessive overloading.

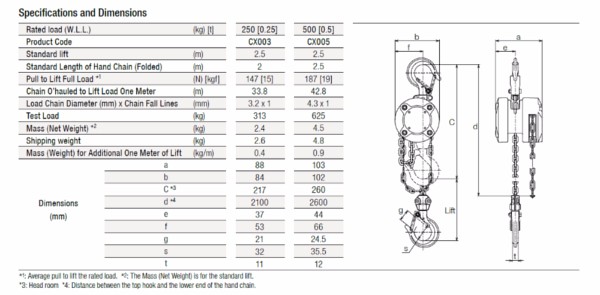

Specifications & Dimensions (mm)





Code

Capacity

(kg) [t]

Standard Lift

(m)

Standard
Length of
Hand Chain
(Folded)
(m)
Load Chain
Dia. ×
Chain Fall
(mm)
Mass
(Net Weight)*
(kg)
CX003250 [0.25]2.523.2x12.4
CX005500 [0.5]2.52.54.3x14.5
